LED Street Light-PQSL003

LED Street Light-PQSL003

Short Description:

Power: 80W, 150W

Product Size (mm):

634×263×102

762×322×107

General Specifications:

1. AC100-240V 50-60Hz

2. CREE chips >100lm/w

3. 3000-6500K CRI: Ra>75

4. Die casting aluminum 5. Lifespan: >50,000hrs

Meanwell driver



Product Detail

Product Tags

Products Details

This is the description of LED Street Light-PQSL003

golf 3

LED Street Lights

golf 2

LED Street Lights

1

LED Street Lights

Features

● Unique Design Using Modular Led Source Kit With High Efficiency Led Chips

● Range Of Lumen Packages And Light Distributions

● Integral Driver With Automatic Temperature Controller To Prevent Over Heating In High Ambient Environments

● Low Profile Design Reduces Wind Resistance And Maximises Heat Dissipation For Optimum Performance

● Die-Cast, Low Copper Aluminium Housing With Polyester Powdercoat Finish, Resistant To Corrosion And Saline Environments

● Unique Mounting Bracket Can Be Positioned For Post Or Arm With Dia. 48-60mm

● Installation Features Include Safety Cut-Off Switch, Ip66 Rapid Electrical Connector, Class Ii Electrical Classification Only.

● Control Options, Dimming, Midnight Function Available.

Golf Ⅰ Parts List

1. Aluminium Gear Box Cover ×1

2. Aluminium Body ×1

3. Aluminium Gear Box Cover Plate×1

4. Variable-Angle Mounting Bracket ×1

5. Reflector ×1

6. Silicone Rubber Gasket ×1

7. Tempered Glass ×1

8. Body Cover ×1 9. Lens ×1

CE BCTC-2011009558-SZJR
BCTC-2011009559-SZJR
IP65 BCTC-2011009792-SZJR

Products Quick Information

Version Dim (Mm) Mass (Kg)
80W LED 634×263×102 5.7
150W LED 762×322×107 8.2

Installation Instruction

Installation Or Assembly Instructions
Please Read These Installation Instructions Carefully Before Installing Or Maintaining This
Equipment. These Instructions And Local Regulations(Where Applicable), By An Authorised And Licenced Electrician. Important – The Product Must Be Maintained And Operated In Accordance With The Manufacture’s instructions, Failure To Do So May Damage The Product And Services. It Is Strongly Recommended That This Important Note Be Communicated To The Owner And Or Operator Of The Installation At The Time Of Site Commissioning. Good Practice Does Not Recommend The 24/7 Use Of Products Without The Application Of Suitable Switch Cycle Intervals. P&Q Is Not Responsible For Any Product Not Maintained In Accordance With The Recommended Procedures. All Products Should Be Thoroughly Cleaned On A Regular Basis To Ensure The Optical Performance, Together With The Electrical,Mechanical And Structural Integrity As Designed, Is Maintained Throughout The Service Life Of The Product.
“Consult A Qualified Electrician To Ensure Correct Branch Circuit Conductor”

Product Specification

GOLF Ⅰ GOLF Ⅱ
Ip Rating Ip65 Ip65
Nominal Voltage Ac180-240v  Ac180-240v
Line Current 2.65A 4.2A

Storage

Prior To Installation Products Are To Be Stored In Cool And Dry Conditions.

Installation Drawings

LED Street light installation-01

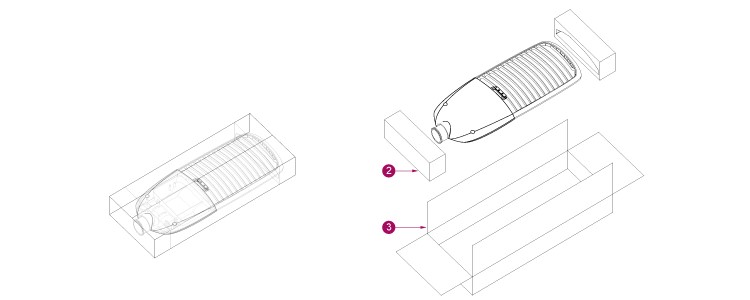

Packing Information

1. Foam Filled Cover

2. Foam Filled Bottom

3. Golf Ⅰ: 680×300×140mm Carton
    Golf Ⅱ: 795×355×140mm Carton
